Basic Info.

Warranty	1 Year
Customized	Customized
Condition	New
Weight	4.5tons
Transport Package	Wooden Pallets
Specification	7700mm* 2750mm* 4000mm
Trademark	FINESTART
Origin	China
Production Capacity	100units/Year

Product Description

Introduction

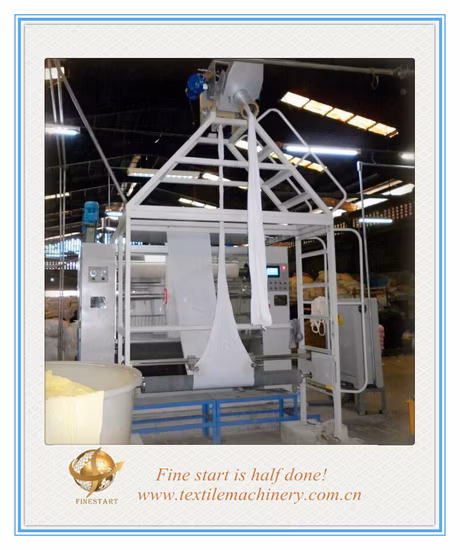

FSRZ2400 series machine is used for impregnating soften agent and hydro-extractor process of the tubular fabrics, it can be substitute for centrifugal machine and wet expander. It is high efficient and easy to operate.

Basic Info
Model	FSRZ1400
Name	Ballon Padding Machine
Function	Ballon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric,
	then padding the residual liqiud. it can be substitute for the traditional process of centrifugal machine and wet expander.
	It is high efficient and easy to operate.
Suitable Fabric	Wet tubular knitted Fabric
OEM	FINESTART
Year of Manufacture	2018
Technical Dates
Working Width	1400mm
Working Speed	3-45m/min
Installed Power	11.45kw
Dimension	(7700mm×2750mm×4000mm)L*W*H
Weight	Approx. 5.8T
Compressed Air	0.35-0.6MPa
Color	Blue/Customize

No	Main Parts	Explanation
1	Turning Table	Turn table is driven by motor, it can turn clockwise or anticlockwise according to untwist needing.
2	Detwister	Detwister will auto detwist the roped fabric and infeed smoothly
3	Ring Guider	Fabrics guide rings position (fabrics working breadth) is adjusted through lead screw, lead screw is driven by motor
4	Trough	Make it by 316L stainless steel,anti-corrosion from the chemical liquid
5	Auto Blower	After detwisting,the blower will inject air into fabric,it will be favor to utmost impregnate the chemical agent on fabric
6	Squeezer	Squeezer consists of 2 sets rubber roller and 2 sets Pneumatics cylinder.
		The pressure of the squeezing roller is adjusted by two sets reduce valve.
		The water squeezing device and softener expression device are driven by one motor separately,
		the two motors are controlled by inverter.
7	Tension Regulator	Set with a regulation-resistance to adjust tension between squeezing roller and delivery device.
Energy Consumption
No		Item	Consumption
1		Driving System	11.45KW
2		Steam	50-100kg/h
Loading
1	1*20GP

Other Products

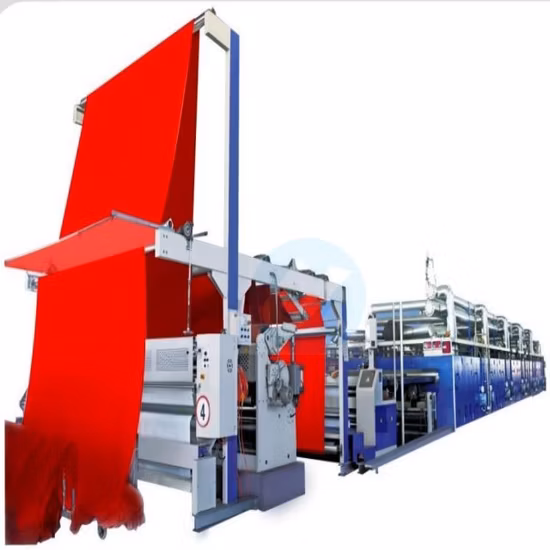

Production Line
